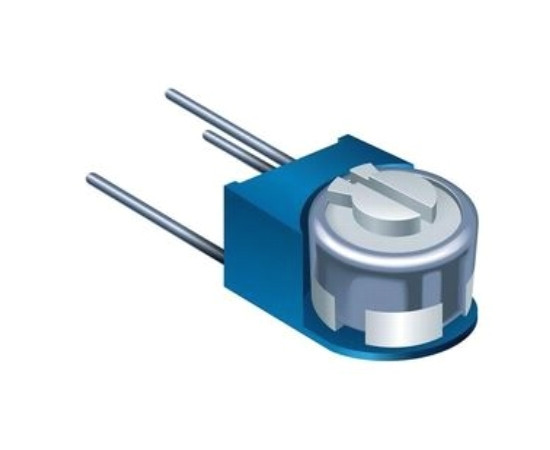

Single turn cermet trimmer; 3329S; 10kR

Symbol Micros: PO 3329sk010

46570

PO 3329sk010

Contractor Symbol:

Case : Rys.3329S

Datasheet

Technical drawing Add to favourites

effective electrical travel: 210° ± 10°; 8,38x6,6mm; power: 0.5W; tolerance: ±10%; 100ppm/°C; operating temperature: -55÷125°C

Parameters

Resistance:	10 kOhm
Dimensions:	8,38x6,6mm
Operating temperature (range):	-55°C ~ 125°C
Rotation angle:	210°
Kind of potentiometer:	Single-turn
Mounting:	THT
Power:	0,5W

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number: 3329S-1-103 RoHS Case style: Pot.3329S

In stock:

100 pcs.

Quantity of pcs.	3+	10+	50+	400+	2000+
Net price (EUR)	0,3467	0,2286	0,1645	0,1392	0,1337

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
50/400 Quantity (multiple: 1)

- +

• Parameters

Resistance:	10 kOhm
Dimensions:	8,38x6,6mm
Operating temperature (range):	-55°C ~ 125°C
Rotation angle:	210°
Kind of potentiometer:	Single-turn
Mounting:	THT
Power:	0,5W
Temperature coefficient:	100ppm/°C
Tolerance:	10%
Type of potentiometer:	Mounting
