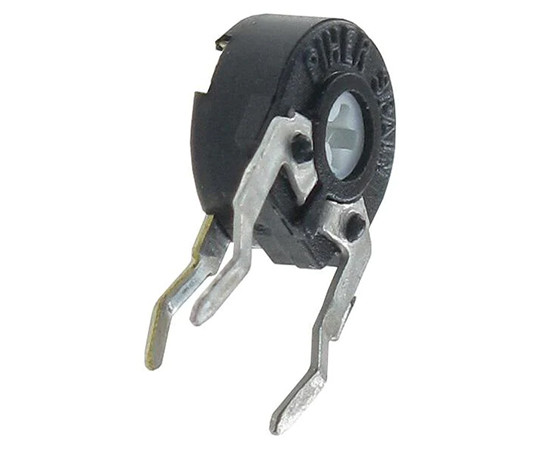

PT6KH-502A2020 Piher Trimmer

Symbol Micros: PO PT06lhk005.00

363829

PO PT06lhk005.00

Contractor Symbol:

Case : Rys.PT6KH

Datasheet

Technical drawing Add to favourites

Single turn carbon trimmer potentiometer; 5kR; vertical; rotation angle 220°; THT; 6,3x3,3mm; power: 0.1W; tolerance: ±20%; 300ppm/°C; r= 5x2,5mm; operating temperature: -25÷70°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Resistance:	5,0kOhm
Dimensions:	6,3x3,3mm
Power:	0,1W
Terminal pitch:	r= 5x2,5mm
Operating temperature (range):	-25°C ~ 70°C
Temperature coefficient:	300ppm/°C
Characteristic:	Linear

All parameters

Manufacturer:: Piher Manufacturer part number: PT6KH502A2020 RoHS Case style: Rys.PT6KH Datasheet

In stock:

200 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,5474	0,3308	0,2539	0,2299	0,2187

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
200 Quantity (multiple: 1)

- +

• Parameters

Resistance:	5,0kOhm
Dimensions:	6,3x3,3mm
Power:	0,1W
Terminal pitch:	r= 5x2,5mm
Operating temperature (range):	-25°C ~ 70°C
Temperature coefficient:	300ppm/°C
Characteristic:	Linear
Kind of potentiometer:	Single-turn
Manufacturer:	Piher
Mounting:	THT
Rotation angle:	220°
Tolerance:	20%
Type of potentiometer:	Mounting
