PT10LV10-104A2020 Piher Trimmer

Symbol Micros: PO PT10lvk100.00

16709

PO PT10lvk100.00

Contractor Symbol:

Case :

Datasheet

Technical drawing Add to favourites

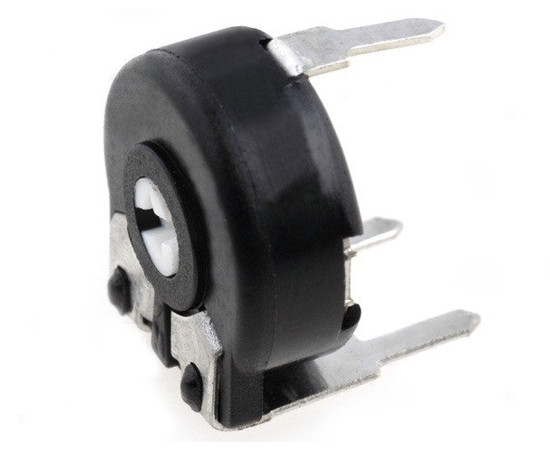

Single turn carbon trimmer potentiometer; 100kR; horizontal; rotation angle 220°; THT; 10,3x10x4,8mm; power: 0.15W; tolerance: ±20%; 300ppm/°C; r= 5x10mm; operating temperature: -25÷70°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Resistance:	100 kOhm
Dimensions:	10,3x10x4,8mm
Power:	150mW
Terminal pitch:	r= 5x10mm
Operating temperature (range):	-25°C ~ 70°C
Temperature coefficient:	300ppm/°C
Characteristic:	Linear

All parameters

Manufacturer:: Piher Manufacturer part number: PT10LV10-104A2020 RoHS Case style: Rys.PT10V Datasheet

In stock:

422 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,3387	0,1862	0,1463	0,1355	0,1299

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

Manufacturer:: Amphenol Manufacturer part number: PT10LV10-104A2020-PM-S Case style: Rys.PT10V

External warehouse:

2000 pcs.

Quantity of pcs.	1000+ (Inappropriate quantity? Ask for a different one).
Net price (EUR)	0,1730

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: Piher Manufacturer part number: PT10LV10-104A2020-PM-S Case style: Rys.PT10V

External warehouse:

1348 pcs.

Quantity of pcs.	1+ (Inappropriate quantity? Ask for a different one).
Net price (EUR)	0,2077

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: Piher Manufacturer part number: PT10LV10-104A2020 Case style: Rys.PT10V

External warehouse:

18 pcs.

Quantity of pcs.	2+ (Inappropriate quantity? Ask for a different one).
Net price (EUR)	0,2352

Add to comparison tool Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Resistance:	100 kOhm
Dimensions:	10,3x10x4,8mm
Power:	150mW
Terminal pitch:	r= 5x10mm
Operating temperature (range):	-25°C ~ 70°C
Temperature coefficient:	300ppm/°C
Characteristic:	Linear
Kind of potentiometer:	Single-turn
Manufacturer:	Piher
Mounting:	THT
Rotation angle:	220°
Tolerance:	20%
Type of potentiometer:	Mounting
