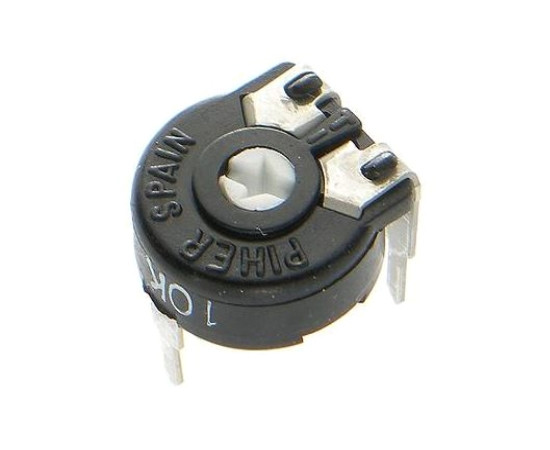

PT10LV10-105A2020 Piher Trimmer

Symbol Micros: PO PT10lvm001.00

23313

PO PT10lvm001.00

Contractor Symbol:

Case :

Datasheet

Technical drawing Add to favourites

Single turn carbon trimmer potentiometer; 1MR; horizontal; rotation angle 220°; THT; 10,3x10x4,8mm; power: 0.15W; tolerance: ±20%; 300ppm/°C; r= 5x10mm; operating temperature: -25÷70°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Resistance:	1 MOhm
Dimensions:	10,3x10x4,8mm
Power:	150mW
Terminal pitch:	r= 5x10mm
Operating temperature (range):	-25°C ~ 70°C
Temperature coefficient:	300ppm/°C
Characteristic:	Linear

All parameters

Manufacturer:: Piher Manufacturer part number: PT10LV10-105A2020-S Case style: Rys.PT10V

External warehouse:

1250 pcs.

Quantity of pcs.	25+ (Inappropriate quantity? Ask for a different one).
Net price (EUR)	0,1766

Add to comparison tool Add inquiry (RFQ)

Packaging:
25

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Resistance:	1 MOhm
Dimensions:	10,3x10x4,8mm
Power:	150mW
Terminal pitch:	r= 5x10mm
Operating temperature (range):	-25°C ~ 70°C
Temperature coefficient:	300ppm/°C
Characteristic:	Linear
Kind of potentiometer:	Single-turn
Manufacturer:	Piher
Mounting:	THT
Rotation angle:	220°
Tolerance:	20%
Type of potentiometer:	Mounting
