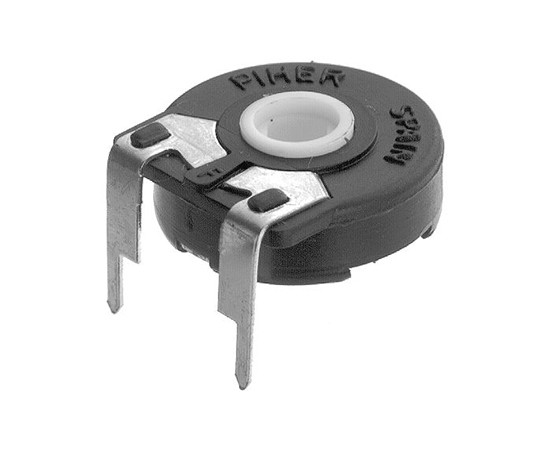

PT15NV02102A2020S Piher Potentiometer

Symbol Micros: PO PT15nvk001.00

111911

PO PT15nvk001.00

Contractor Symbol:

Case : Rys.PT15V

Datasheet

Technical drawing Add to favourites

Single turn carbon potentiometer; 1kR; horizontal; rotation angle 265°; THT; 15x6mm; power: 0.25W; tolerance: ±20%; r=12,5x10mm; operating temperature: -25÷70°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Resistance:	1,0 kOhm
Characteristic:	Linear
Dimensions:	15x6mm
Kind of potentiometer:	Single-turn
Manufacturer:	Piher
Mounting:	THT
Operating temperature (range):	-25°C ~ 70°C

All parameters

Manufacturer:: Piher Manufacturer part number: PT15NV02102A2020S RoHS Case style: Pot.PT15V Datasheet

In stock:

1 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2443	0,1217	0,0726	0,0601	0,0540

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
1 Quantity (multiple: 1)

- +

• Parameters

Resistance:	1,0 kOhm
Characteristic:	Linear
Dimensions:	15x6mm
Kind of potentiometer:	Single-turn
Manufacturer:	Piher
Mounting:	THT
Operating temperature (range):	-25°C ~ 70°C
Power:	0,25W
Rotation angle:	265°
Terminal pitch:	r=12,5x10mm
Tolerance:	20%
Type of potentiometer:	Mounting
