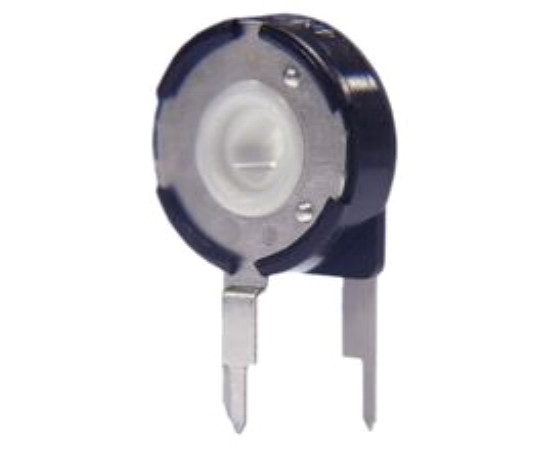

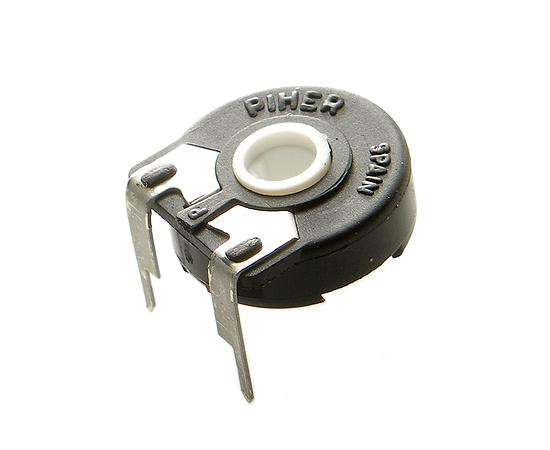

PT15NV02502A2020S Piher Potentiometer

Symbol Micros: PO PT15nvk005.00

21606

PO PT15nvk005.00

Contractor Symbol:

Case : Rys.PT15NV

Datasheet

Technical drawing Add to favourites

Single turn carbon potentiometer; 5kR; horizontal; rotation angle 265°; THT; 15x6mm; power: 0.25W; tolerance: ±20%; r=12,5x10mm; operating temperature: -25÷70°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Resistance:	5,0kOhm
Characteristic:	Linear
Dimensions:	15x6mm
Kind of potentiometer:	Single-turn
Manufacturer:	Piher
Mounting:	THT
Operating temperature (range):	-25°C ~ 70°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	5,0kOhm
Characteristic:	Linear
Dimensions:	15x6mm
Kind of potentiometer:	Single-turn
Manufacturer:	Piher
Mounting:	THT
Operating temperature (range):	-25°C ~ 70°C
Power:	0,25W
Rotation angle:	265°
Terminal pitch:	r=12,5x10mm
Tolerance:	20%
Type of potentiometer:	Mounting
