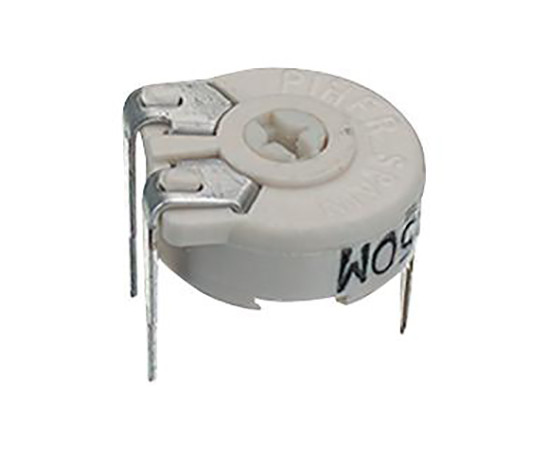

PTC10LV10-223A2020 Piher Trimmer

Symbol Micros: PO PTC10lvk022.00

38185

PO PTC10lvk022.00

Contractor Symbol:

Case : Rys.PTC10V

Datasheet

Add to favourites

Single turn carbon trimmer potentiometer; 22kR; horizontal; rotation angle 220°; THT; 10,3x10x4,8mm; power: 0.33W; tolerance: ±20%; 100ppm/°C; r= 5x10mm; operating temperature: -40÷90°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Resistance:	22 kOhm
Dimensions:	10,3x10x4,8mm
Power:	0,33W
Terminal pitch:	r= 5x10mm
Operating temperature (range):	-40°C ~ 90°C
Temperature coefficient:	100ppm/°C
Characteristic:	Linear

All parameters

Manufacturer:: Piher Manufacturer part number: PTC10LV10-223A202RoHS Case style: Pot.PTC10V Datasheet

In stock:

80 pcs.

Quantity of pcs.	2+	10+	30+	100+	330+
Net price (EUR)	0,5406	0,3382	0,2807	0,2485	0,2347

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
330 Quantity (multiple: 1)

- +

• Parameters

Resistance:	22 kOhm
Dimensions:	10,3x10x4,8mm
Power:	0,33W
Terminal pitch:	r= 5x10mm
Operating temperature (range):	-40°C ~ 90°C
Temperature coefficient:	100ppm/°C
Characteristic:	Linear
Kind of potentiometer:	Single-turn
Manufacturer:	Piher
Mounting:	THT
Rotation angle:	220°
Tolerance:	20%
Type of potentiometer:	Mounting
