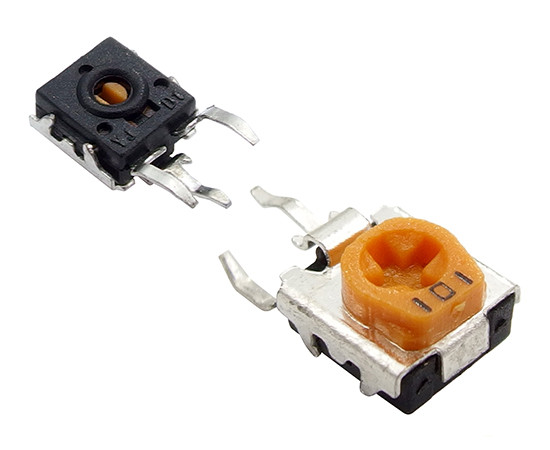

Single turn trimmer potentiomter; RM-063; metal case; 2kR

Symbol Micros: PO RM63K002m

122997

PO RM63K002m

Contractor Symbol:

Case : Rys.RM-063m

Datasheet

Technical drawing Add to favourites

vertical; rotation angle: 210° ± 10°; THT; Vmax: 50V; 6,4x4,2mm; power: 0,1W (at 50°C); r= 5x2,5mm; operating temperature: -25÷60°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Resistance:	2,0 kOhm
Dimensions:	6,4x4,2mm
Operating temperature (range):	-25°C ~ 60°C
Rotation angle:	210°
Kind of potentiometer:	Single-turn
Mounting:	THT
Power:	0,1W

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	2,0 kOhm
Dimensions:	6,4x4,2mm
Operating temperature (range):	-25°C ~ 60°C
Rotation angle:	210°
Kind of potentiometer:	Single-turn
Mounting:	THT
Power:	0,1W
Terminal pitch:	5x2,5mm
Type of potentiometer:	Mounting
