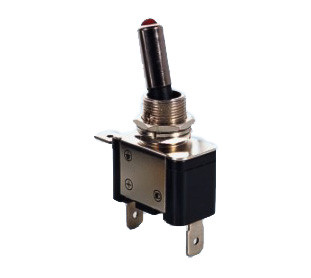

ASW-07D automotive switch

Symbol Micros: PRZ Asw07Dr

51081

PRZ Asw07Dr

Contractor Symbol:

Case : Rys.ASW-07Dr

Datasheet

Technical drawing Add to favourites

25A 12VDC ON-OFF; single pole; SPST; 3P; LED: red; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts rating:	20A 12VDC
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive

All parameters

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.ASW-07Dr

In stock:

373 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,8698	1,4916	1,2755	1,1463	1,0993

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/500 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-03-30

Quantity of pcs.: 500

• Parameters

Contacts rating:	20A 12VDC
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
