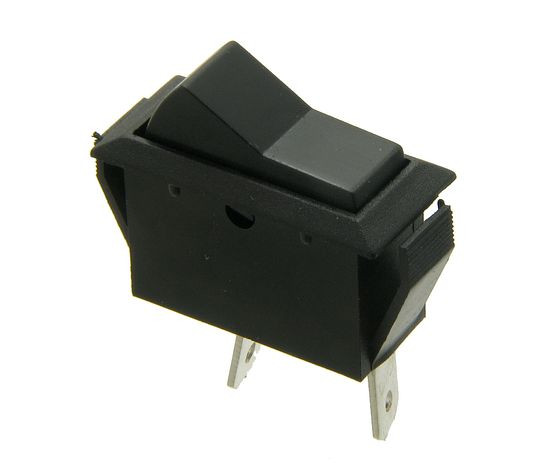

ASW-09-101 automotive switch

Symbol Micros: PRZ Asw09-101b

48209

PRZ Asw09-101b

Contractor Symbol:

Case : Rys.ASW-09-101

Datasheet

Technical drawing Add to favourites

20A; 12VDC; ON-OFF; single pole; SPST 2P; black; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive

All parameters

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.ASW-09-101

In stock:

280 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,5498	0,3497	0,2761	0,2508	0,2393

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
