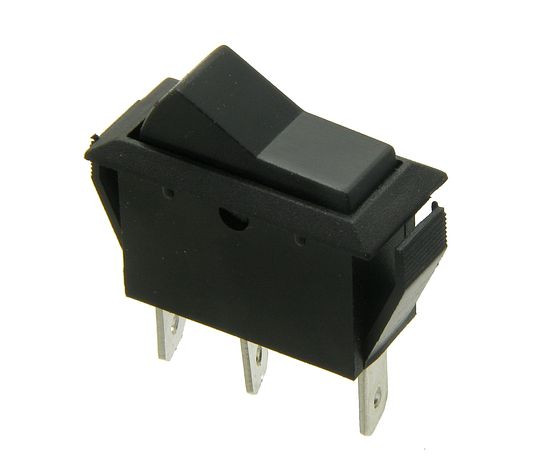

ASW-09-102 automotive switch

Symbol Micros: PRZ Asw09-102b

48210

PRZ Asw09-102b

Contractor Symbol:

Case : Rys.ASW-09-102

Datasheet

Technical drawing Add to favourites

20A; 12VDC; ON-ON; single pole; SPDT; 3P; black; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-ON
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive

All parameters

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.ASW-09-102

In stock:

350 pcs.

Quantity of pcs.	2+	10+	40+	100+	500+
Net price (EUR)	0,7893	0,4956	0,3993	0,3688	0,3429

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/500 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Contacts configuration:	SPDT
Switching method:	ON-ON
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
