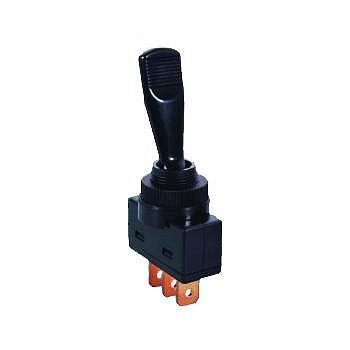

ASW-13-103 automotive switch

Symbol Micros: PRZ Asw13-103

37421

PRZ Asw13-103

Contractor Symbol:

Case : Rys.ASW-13-103

Datasheet

Technical drawing Add to favourites

20A; 12VDC; 10A; 125VAC; ON-OFF-ON; 3P; black; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Switching method:	ON-OFF-ON
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive

All parameters

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.ASW-13-103

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,0061	0,6692	0,5536	0,4983	0,4790

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Switching method:	ON-OFF-ON
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
