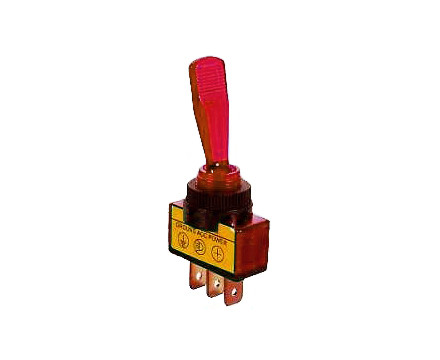

ASW-13D automotive switch

Symbol Micros: PRZ Asw13d

37418

PRZ Asw13d

Contractor Symbol:

Case : Rys.ASW-13D

Datasheet

Technical drawing Add to favourites

20A; 12VDC; ON-OFF; single pole; SPST; 3P; with lamp; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	20A 12VDC
Key button colour:	Red
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-04-05

Quantity of pcs.: 500

• Parameters

Contacts rating:	20A 12VDC
Key button colour:	Red
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
