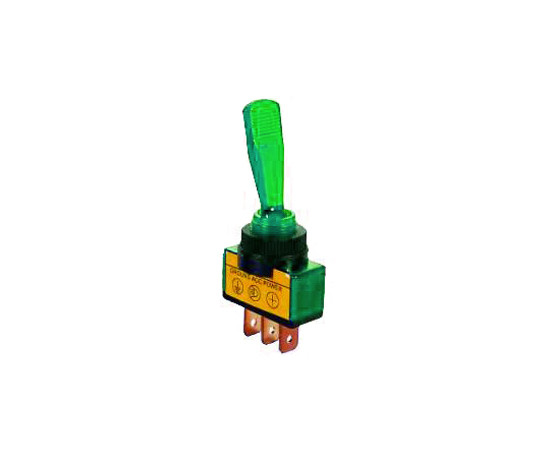

ASW-13D automotive switch

Symbol Micros: PRZ Asw13dg

102745

PRZ Asw13dg

Contractor Symbol:

Case : Rys.ASW-13Dgr

Datasheet

Technical drawing Add to favourites

20A; 12VDC; ON-OFF; single pole; SPST; 3P; with lamp; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	20A 12VDC
Key button colour:	Green
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive

All parameters

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.ASW-13Dgr

In stock:

162 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,0457	0,6963	0,5743	0,5193	0,4977

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	20A 12VDC
Key button colour:	Green
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
