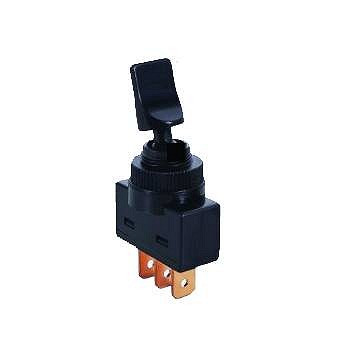

ASW-14-103 automotive switch

Symbol Micros: PRZ Asw14-103

16219

PRZ Asw14-103

Contractor Symbol:

Case : Rys.ASW-14-103

Datasheet

Technical drawing Add to favourites

20A; 12VDC; 10A; 125VAC; ON-OFF-ON; 3P; black; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Switching method:	ON-OFF-ON
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive

All parameters

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.ASW-14-103

In stock:

75 pcs.

Quantity of pcs.	2+	10+	30+	100+	400+
Net price (EUR)	0,9302	0,5825	0,4839	0,4322	0,4040

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-03-30

Quantity of pcs.: 200

• Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Switching method:	ON-OFF-ON
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
