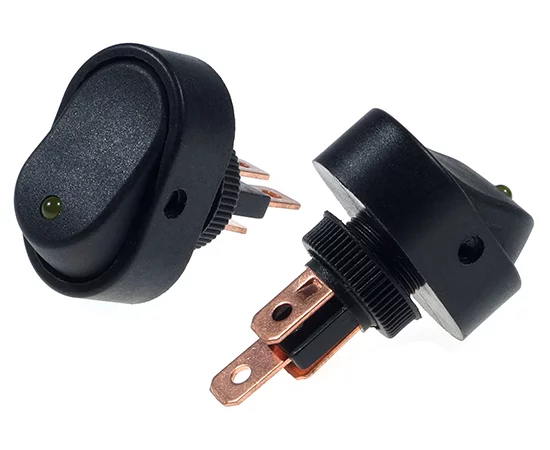

ASW-20D automotive switch

Symbol Micros: PRZ Asw20db/y.

345161

PRZ Asw20db/y.

Contractor Symbol:

Case : Rys.ASW-20Dby

Datasheet

Technical drawing Add to favourites

20A; 12VDC; ON-OFF; single pole; SPST; 3P; with yellow lamp; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Backlight colour:	Yellow
Contacts rating:	20A 12VDC
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C

All parameters

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.ASW-20Dby

In stock:

230 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,3849	0,9708	0,8236	0,7546	0,7293

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Yellow
Contacts rating:	20A 12VDC
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
