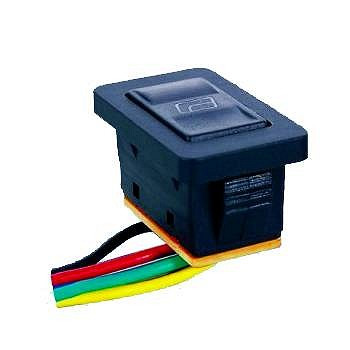

ASW-21D automotive switch

Symbol Micros: PRZ Asw21d

37417

PRZ Asw21d

Contractor Symbol:

Case : Rys.ASW-21D

Datasheet

Technical drawing Add to favourites

20A; 12VDC; double poles; DPDT 6P; black with lamp; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Contacts configuration:	DPDT
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Contacts configuration:	DPDT
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
