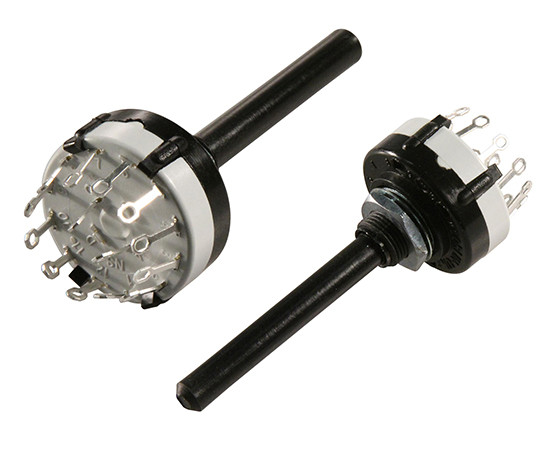

CK1051 LORLIN Switch

Symbol Micros: PRZ CK1051

115154

PRZ CK1051

Contractor Symbol:

Case : Rys.CK1051

Datasheet

Technical drawing Add to favourites

Rotary switch; stable positions: 4x30°, shaft diameter 6mm, shaft length 50mm, thread M10x0,75 PCB; switching torque 8.6Ncm; switching method BBM (non-shorting)

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Leads:	For PCB
Manufacturer:	LORLIN
Mounting thread:	M10x0,75
Shaft diameter:	6mm
Shaft length:	50mm
Type of switch:	Rotary

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Leads:	For PCB
Manufacturer:	LORLIN
Mounting thread:	M10x0,75
Shaft diameter:	6mm
Shaft length:	50mm
Type of switch:	Rotary
