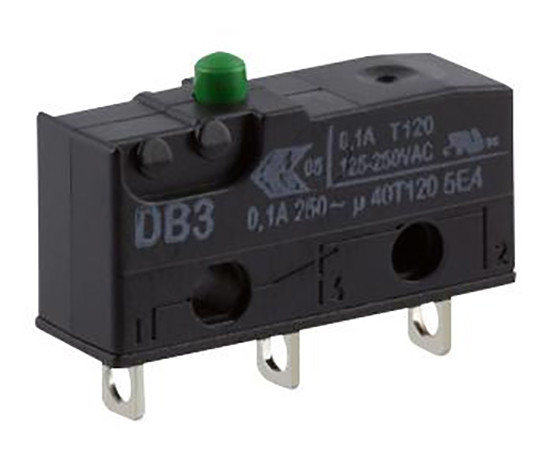

DB3C-A1AA Cherry

Symbol Micros: PRZ DB3C-A1AA

364067

PRZ DB3C-A1AA

Contractor Symbol:

Case : Rys.DB3C-A1AA

Datasheet

Technical drawing Add to favourites

Micro switch; soldering; dimensions: 20x6,45x9,65mm; 0.1A; 250VAC; ON-(ON); SPDT; endurance: 15000000 cycles; 1,47N; temp.: -40°C+120°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	20x6,45x9,65mm
Contacts rating:	0.1A 250VAC
Force:	1,47N
Operating temperature (range):	-40°C ~ 120°C
Leads:	For soldering
Manufacturer:	Cherry
Switching method:	ON-(ON)

All parameters

Manufacturer:: Cherry Semiconductor Corporation Manufacturer part number: DB3C-A1AA RoHS Case style: Rys.DB3C-A1AA Datasheet

In stock:

30 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,5872	1,2126	1,0019	0,8802	0,8357

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	20x6,45x9,65mm
Contacts rating:	0.1A 250VAC
Force:	1,47N
Operating temperature (range):	-40°C ~ 120°C
Leads:	For soldering
Manufacturer:	Cherry
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
