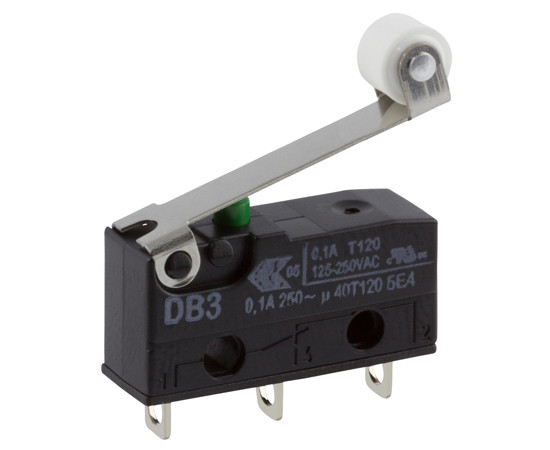

DB3C-A1RC Cherry

Symbol Micros: PRZ DB3C-A1RC

364074

PRZ DB3C-A1RC

Contractor Symbol:

Case : Rys.DB3C-A1RC

Datasheet

Technical drawing Add to favourites

Micro switch; soldering; dimensions: 20x9,65x6,5mm; 0.1A; 125VAC; ON-(ON); SPDT; 0,54N; endurance: 15000000 cycles; operating temperature: -40°C+120°C

Parameters

Dimensions:	20x9,65x6,5mm
Contacts rating:	0.1A 125VAC
Force:	0,54N
Operating temperature (range):	-40°C ~ 120°C
Leads:	For soldering
Manufacturer:	Cherry
Switching method:	ON-(ON)

All parameters

Manufacturer:: Cherry Semiconductor Corporation Manufacturer part number: DB3C-A1RC RoHS Case style: Rys.DB3C-A1RC Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,0565	1,6838	1,4692	1,3348	1,2853

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	20x9,65x6,5mm
Contacts rating:	0.1A 125VAC
Force:	0,54N
Operating temperature (range):	-40°C ~ 120°C
Leads:	For soldering
Manufacturer:	Cherry
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
