DG23-B2LA Cherry

Symbol Micros: PRZ DG23-B2LA

364075

PRZ DG23-B2LA

Contractor Symbol:

Case : Rys.DG23-B2LA

Datasheet

Technical drawing Add to favourites

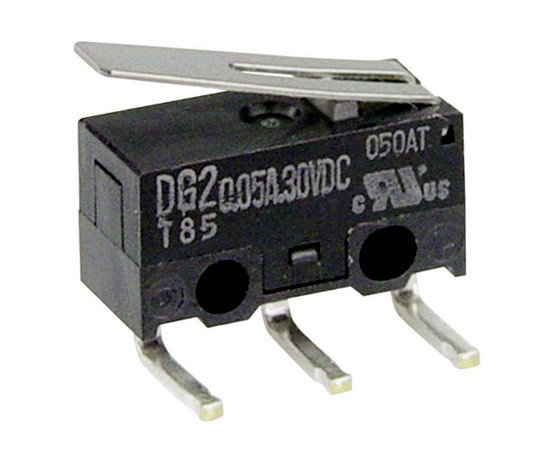

Micro switch; PCB; right; dimensions: 12,8x5,8x6,5mm; 0,05A; 30VDC; ON-(ON); SPDT; endurance: 1000000 cycles; 0.44N; operating temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	12,8x5,8x6,5mm
Contacts rating:	0.05A 30VDC
Force:	0,44N
Operating temperature (range):	-25°C ~ 85°C
Leads:	For PCB
Manufacturer:	Cherry
Switching method:	ON-(ON)

All parameters

Manufacturer:: Cherry Semiconductor Corporation Manufacturer part number: DG23-B2LA RoHS Case style: Rys.DG23-B2LA Datasheet

In stock:

90 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,5471	1,1462	1,0033	0,9306	0,9095

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	12,8x5,8x6,5mm
Contacts rating:	0.05A 30VDC
Force:	0,44N
Operating temperature (range):	-25°C ~ 85°C
Leads:	For PCB
Manufacturer:	Cherry
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
