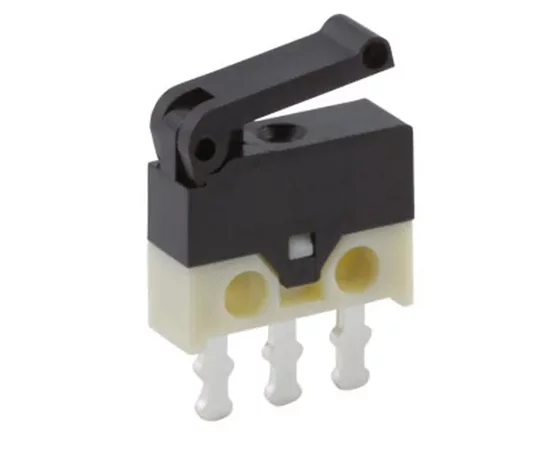

DH2C-B1PA Cherry

Symbol Micros: PRZ DH2C-B1PA

364069

PRZ DH2C-B1PA

Contractor Symbol:

Case : Rys.DH2C-B1PA

Datasheet

Technical drawing Add to favourites

Micro switch; soldering; dimensions: 8,2x2,7x6,2mm; 0,5A; 30VDC ; ON-(ON); SPDT; endurance: 50000 cycles; 0.49N; operating temperature: -25°C+70°C

Parameters

Dimensions:	8,2x2,7x6,2mm
Contacts rating:	0.5A 30VDC
Force:	0,49N
Operating temperature (range):	-25°C ~ 70°C
Leads:	For soldering
Manufacturer:	Cherry
Switching method:	ON-(ON)

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	8,2x2,7x6,2mm
Contacts rating:	0.5A 30VDC
Force:	0,49N
Operating temperature (range):	-25°C ~ 70°C
Leads:	For soldering
Manufacturer:	Cherry
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
