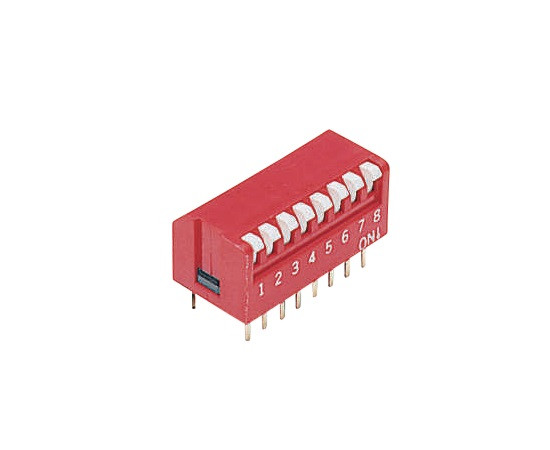

NDP-08-V DIPTRONICS Dip-switch

Symbol Micros: PRZ Dip08pr

8933

PRZ Dip08pr

Contractor Symbol:

Case : Rys.dwsDIP8p

Datasheet

Technical drawing Add to favourites

8 contacts; THT; red color; gold plating 1u"; height: 9.75mm; type: piano eqiv. APEM DP, ITT BP, CTS Elec. 194/195 DP, ECE EPA, Resonswitch RP

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Overall length:	21,89mm
Number of sections:	8
Manufacturer:	DIPTRONICS
Mechanical durability:	2000 cycles
Colour:	Red
Type of slider:	Piano
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Overall length:	21,89mm
Number of sections:	8
Manufacturer:	DIPTRONICS
Mechanical durability:	2000 cycles
Colour:	Red
Type of slider:	Piano
Mounting:	THT
Terminal pitch:	2,54mm
