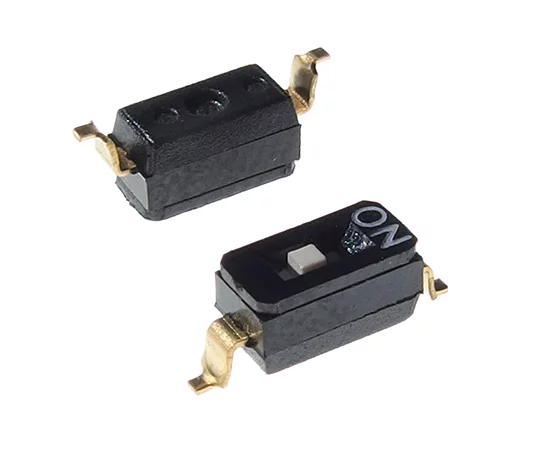

DIS01L01 SAB Dip-switch

Symbol Micros: PRZ DipICs01n

208903

PRZ DipICs01n

Contractor Symbol:

Case : Rys.dswICs1n

Datasheet

Technical drawing Add to favourites

1 contact, SMD; pitch: 2,54mm; black colour; pad spacing 9.8mm; gold plating 3u"; height 3.40mm; hidden knob eqiv. APEM IKD, ITT CK SDA, CTS 219, DIP DM, ECE EAD, KE DSIC, RS RM

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Overall length:	2,98mm
Number of sections:	1
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Black
Type of slider:	Flat
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Overall length:	2,98mm
Number of sections:	1
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Black
Type of slider:	Flat
Mounting:	SMD
Terminal pitch:	2,54mm
