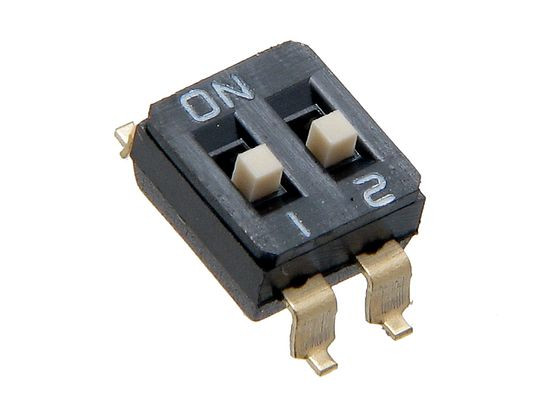

DIS02G01 SAB Dip-switch

Symbol Micros: PRZ DipICs02

16803

PRZ DipICs02

Contractor Symbol:

Case : Rys.dswICs2

Datasheet

Technical drawing Add to favourites

2 contacts, SMD; pitch: 2,54mm; black colour; pad spacing 9.8mm; gold plating 3u"; height 3.40mm + knob 0.4mm eqiv. APEM IKD, ITT CK SDA, CTS 219, DIP DM, ECE EAD, KE DSIC, RS RM

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Overall length:	5,52mm
Number of sections:	2
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Black
Type of slider:	Raised
Mounting:	SMD

All parameters

Manufacturer:: SAB Manufacturer part number: DIS02G01-R RoHS Case style: Rys.dswICs2

In stock:

1000 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,8283	0,5241	0,4141	0,3767	0,3603

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-02-01

Quantity of pcs.: 3000

• Parameters

Overall length:	5,52mm
Number of sections:	2
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Black
Type of slider:	Raised
Mounting:	SMD
Terminal pitch:	2,54mm
