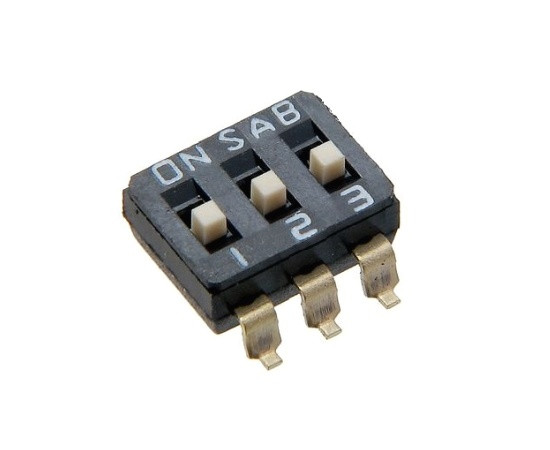

DIS03G01 SAB Dip-switch

Symbol Micros: PRZ DipICs03

77940

PRZ DipICs03

Contractor Symbol:

Case : Rys.dswICs3

Datasheet

Technical drawing Add to favourites

3 contacts, SMD; pitch: 2,54mm; black colour; pad spacing 9.8mm; gold plating 3u"; height 3.40mm + knob 0.4mm eqiv. APEM IKD, ITT CK SDA, CTS 319, DIP DM, ECE EAD, KE DSIC, RS RM

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Overall length:	8,06mm
Number of sections:	3
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Black
Type of slider:	Raised
Mounting:	SMD

All parameters

Manufacturer:: SAB Manufacturer part number: DIS03G01-R RoHS Case style: Rys.dswICs3

In stock:

287 pcs.

Quantity of pcs.	1+	5+	20+	60+	300+
Net price (EUR)	0,9725	0,6436	0,5309	0,4909	0,4627

Add to comparison tool Add inquiry (RFQ)

Packaging:
800 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-01-15

Quantity of pcs.: 1600

• Parameters

Overall length:	8,06mm
Number of sections:	3
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Black
Type of slider:	Raised
Mounting:	SMD
Terminal pitch:	2,54mm
