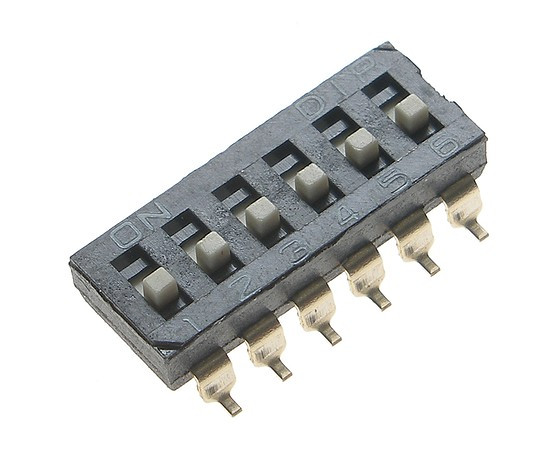

DIS06G01 SAB Dip-switch

Symbol Micros: PRZ DipICs06

16805

PRZ DipICs06

Contractor Symbol:

Case : Rys.dswICs6

Datasheet

Technical drawing Add to favourites

6 contacts, SMD; pitch: 2,54mm; black colour; pad spacing 9.8mm; gold plating 3u"; height 3.40mm + knob 0.4mm eqiv. APEM IKD, ITT CK SDA, CTS 219, DIP DM, ECE EAD, KE DSIC, RS RM

Parameters

Overall length:	15,68mm
Number of sections:	6
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Black
Type of slider:	Raised
Mounting:	SMD

All parameters

Manufacturer:: SAB Manufacturer part number: DIS06G01-R RoHS Case style: Rys.dswICs6

In stock:

400 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,2428	0,8700	0,7387	0,6754	0,6543

Add to comparison tool Add inquiry (RFQ)

Packaging:
800 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-07-30

Quantity of pcs.: 1600

• Parameters

Overall length:	15,68mm
Number of sections:	6
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Black
Type of slider:	Raised
Mounting:	SMD
Terminal pitch:	2,54mm
