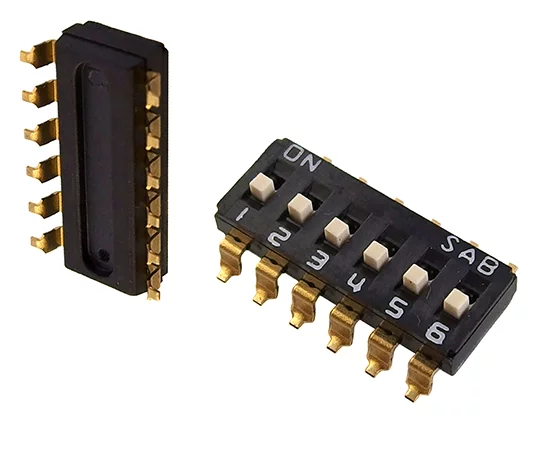

DIS06G01 SAB Dip-switch

Symbol Micros: PRZ DipICs08

16806

PRZ DipICs08

Contractor Symbol:

Case : Rys.dswICs8

Datasheet

Technical drawing Add to favourites

8 contacts, SMD; pitch: 2,54mm; black colour; pad spacing 9.8mm; gold plating 3u"; height 3.40mm + knob 0.4mm eqiv. APEM IKD, ITT CK SDA, CTS 219, DIP DM, ECE EAD, KE DSIC, RS RM, ESD108E, DM-08-V

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Overall length:	20,76mm
Number of sections:	8
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Black
Type of slider:	Raised
Mounting:	SMD

All parameters

Manufacturer:: SAB Manufacturer part number: DIS08G01-R RoHS Case style: Rys.dswICs8

In stock:

469 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,0547	0,7023	0,5802	0,5238	0,5027

Add to comparison tool Add inquiry (RFQ)

Packaging:
800/2400/4800 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-02-01

Quantity of pcs.: 2400

• Parameters

Overall length:	20,76mm
Number of sections:	8
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Black
Type of slider:	Raised
Mounting:	SMD
Terminal pitch:	2,54mm
