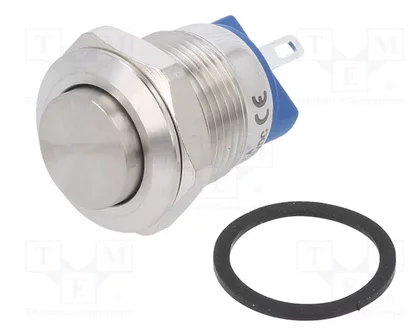

Vandal proof push button switch; GQ12-AH-10/J/S

Symbol Micros: PRZ GQ12-AH-10/J/S

400746

PRZ GQ12-AH-10/J/S

Contractor Symbol:

Case : Rys.GQ12-AH-10/J/S

Datasheet

Technical drawing Add to favourites

12mm; momentary; OFF-(ON); SPST-NO; stainless steel; pin terminals; protruding button; 2A; 36VDC; IP65; lifetime: 1000000 cycles

Parameters

Contacts rating:	2A/36VDC
Switching method:	OFF-(ON)
Button shape:	Protruding
IP rating:	IP65
Contacts configuration:	SPST-NO
Mounting hole diameter:	12mm
Leads:	For soldering

All parameters

Manufacturer:: ONPOW Manufacturer part number: GQ12-AH-10/J/S RoHS Case style: Rys.GQ12-AH-10/J/S

In stock:

23 pcs.

Quantity of pcs.	1+	3+	10+	30+	90+
Net price (EUR)	3,4813	3,0927	2,8600	2,7436	2,6785

Add to comparison tool Add inquiry (RFQ)

Packaging:
30 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	2A/36VDC
Switching method:	OFF-(ON)
Button shape:	Protruding
IP rating:	IP65
Contacts configuration:	SPST-NO
Mounting hole diameter:	12mm
Leads:	For soldering
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	Onpow
Type of switch:	Vandal-resistant
