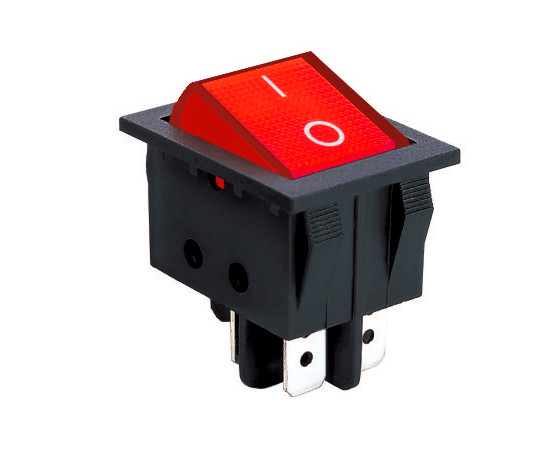

IRS201-3A3r; illuminated; rocker switch;

Symbol Micros: PRZ Irs201-3a3r

74397

PRZ Irs201-3a3r

Contractor Symbol:

Case : Rys.IRS201-3A3r

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker red; illumination; 4P; 20A 125V; 15A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF
Body colour:	Black
Manufacturer:	N/A
Accessories type:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF
Body colour:	Black
Manufacturer:	N/A
Accessories type:	N/A
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Button
