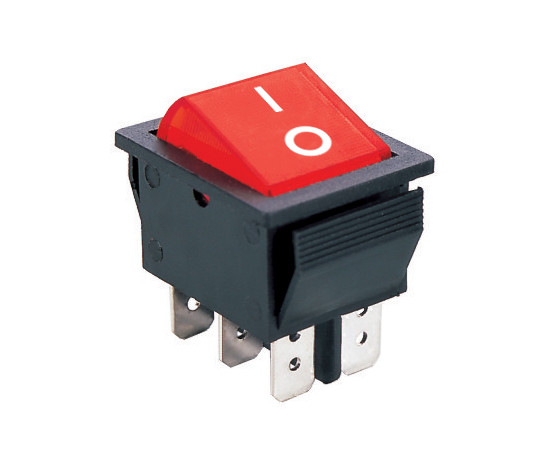

IRS202-1A3r; illuminated; rocker switch;

Symbol Micros: PRZ Irs202-1a3r

74389

PRZ Irs202-1a3r

Contractor Symbol:

Case : Rys.IRS202-1A3r

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-ON; rocker red illumination; DPDT; 6P; 20A 125V; 15A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-ON
Contacts configuration:	DPDT
Body colour:	Black
Manufacturer:	N/A

All parameters

Manufacturer:: SWI Manufacturer part number: IRS202-1A3 Red RoHS Case style: Rys.IRS202-1A3r

In stock:

100 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,2284	0,9387	0,7759	0,6801	0,6466

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-ON
Contacts configuration:	DPDT
Body colour:	Black
Manufacturer:	N/A
Accessories type:	N/A
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Button
