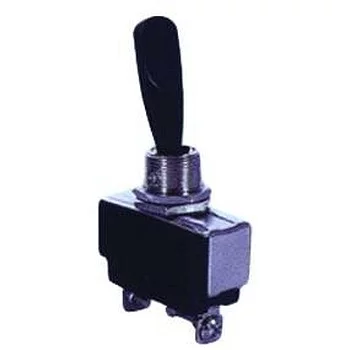

KN3B-113AE; toggle switch;

Symbol Micros: PRZ Kn3b113ae

36481

PRZ Kn3b113ae

Contractor Symbol:

Case : Rys.KN3B-113AE

Datasheet

Technical drawing Add to favourites

single pole; screw terminals; flat lever, ON-OFF-(ON); SPDT; 3P; 15A 125VAC; 10A 250VAC

Parameters

Switching method:	ON-OFF-(ON)
Contacts rating:	15A 125V 10A 250V
Contacts configuration:	SPDT
Type of outputs:	Screw on
Accessories type:	N/A
Type of switch:	Lever

All parameters

Manufacturer:: SWI Manufacturer part number: KN3B-113AE RoHS Case style: Rys.KN3B-113AE

In stock:

100 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,8961	1,5117	1,2947	1,1627	1,1155

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Switching method:	ON-OFF-(ON)
Contacts rating:	15A 125V 10A 250V
Contacts configuration:	SPDT
Type of outputs:	Screw on
Accessories type:	N/A
Type of switch:	Lever
