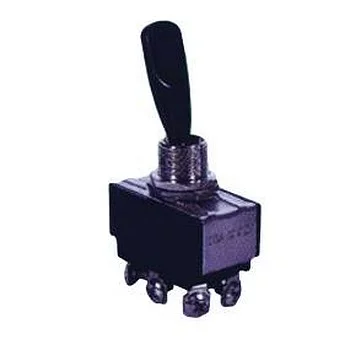

KN3B-203AE; toggle switch;

Symbol Micros: PRZ Kn3b203ae

36822

PRZ Kn3b203ae

Contractor Symbol:

Case : Rys.KN3B-203AE

Datasheet

Technical drawing Add to favourites

double pole; screw terminals; flat lever, ON-OFF-ON; DPDT; 6P; 15A 125VAC; 10A 250VAC

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Switching method:	ON-OFF-ON
Contacts rating:	15A 125V 10A 250V
Contacts configuration:	DPDT
Type of outputs:	Screw on
Accessories type:	N/A
Type of switch:	Lever

All parameters

Manufacturer:: SWI Manufacturer part number: KN3B-203AE RoHS Case style: Rys.KN3B-203AE

In stock:

100 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,8463	1,5480	1,3765	1,2708	1,2309

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Switching method:	ON-OFF-ON
Contacts rating:	15A 125V 10A 250V
Contacts configuration:	DPDT
Type of outputs:	Screw on
Accessories type:	N/A
Type of switch:	Lever
