KN3B-403; toggle switch;

Symbol Micros: PRZ Kn3b403

26029

PRZ Kn3b403

Contractor Symbol:

Case : Rys.KN3B-403

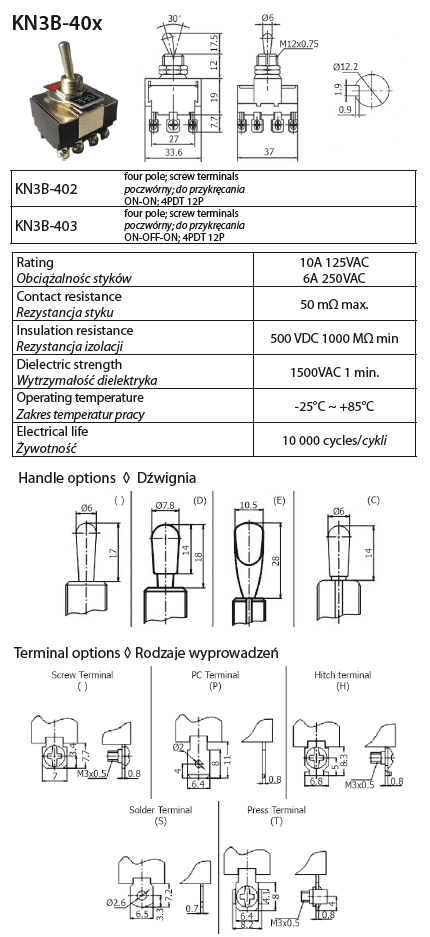

Datasheet

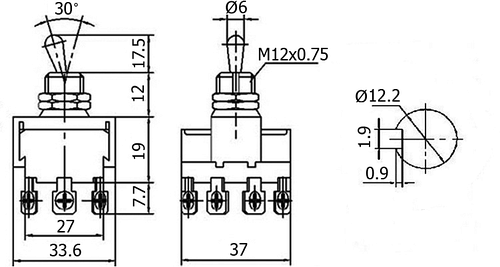

Technical drawing Add to favourites

four pole, screw terminals; ON-OFF-ON; 4PDT; 12P; 10A 125VAC; 5A 250VAC

Parameters

Switching method:	ON-OFF-ON
Contacts rating:	10A 125V 5A 250V
Contacts configuration:	4PDT
Type of outputs:	Screw on
Accessories type:	N/A
Type of switch:	Lever

All parameters

Manufacturer:: SWI Manufacturer part number: KN3B-403 RoHS Case style: Rys.KN3B-403

In stock:

0 pcs.

Quantity of pcs.	1+	5+	25+	100+	200+
Net price (EUR)	3,2531	2,7979	2,6001	2,5238	2,5024

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/200 Quantity (multiple: 1)

- +

• Parameters

Switching method:	ON-OFF-ON
Contacts rating:	10A 125V 5A 250V
Contacts configuration:	4PDT
Type of outputs:	Screw on
Accessories type:	N/A
Type of switch:	Lever
