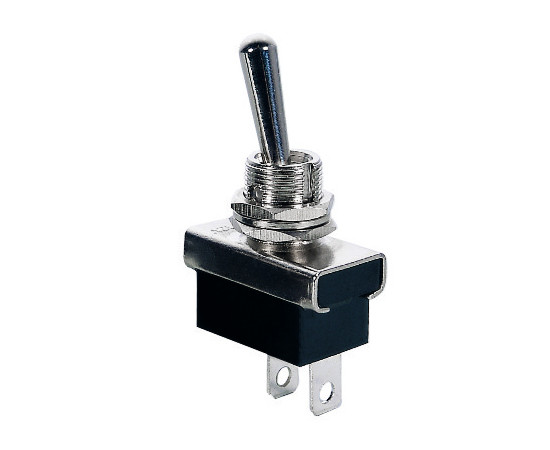

KN3D-111; toggle switch;

Symbol Micros: PRZ Kn3d111

74294

PRZ Kn3d111

Contractor Symbol:

Case : Rys.KN3D-111

Datasheet

Technical drawing Add to favourites

single pole; solder terminals; (ON)-OFF; SPST; 2P; 6A 125VAC; 3A 250VAC; 10A 12VDC

Parameters

Switching method:	(ON)-OFF
Contacts rating:	3A 250V 10A 12V
Contacts configuration:	SPST
Type of outputs:	Soldering
Accessories type:	N/A
Type of switch:	Lever

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-07-30

Quantity of pcs.: 300

• Parameters

Switching method:	(ON)-OFF
Contacts rating:	3A 250V 10A 12V
Contacts configuration:	SPST
Type of outputs:	Soldering
Accessories type:	N/A
Type of switch:	Lever
