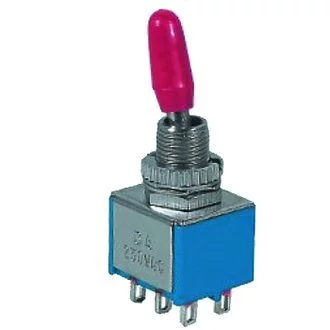

KNX-203-D1; toggle switch;

Symbol Micros: PRZ KNX-203

36461

PRZ KNX-203

Contractor Symbol:

Case : Rys.KNX-203

Datasheet

Technical drawing Add to favourites

double pole; solder terminals; with grand lever; ON-OFF-ON; DPDT; 6P; 6A 125VAC; 3A 250VAC

Parameters

Switching method:	ON-OFF-ON
Contacts configuration:	DPDT
Contacts rating:	6A 125VAC 3A 250VAC
Kind of toggle:	Round
Type of outputs:	Soldering
Accessories type:	N/A
Type of switch:	Lever

All parameters

Manufacturer:: SWI Manufacturer part number: KNX-203-D1/R RoHS Case style: Rys.KNX-203

In stock:

90 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,8770	0,5815	0,4814	0,4337	0,4171

Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Switching method:	ON-OFF-ON
Contacts configuration:	DPDT
Contacts rating:	6A 125VAC 3A 250VAC
Kind of toggle:	Round
Type of outputs:	Soldering
Accessories type:	N/A
Type of switch:	Lever
