Control box; N/O+N/O

Symbol Micros: PRZ LAY5-B222

216102

PRZ LAY5-B222

Contractor Symbol:

Case : Rys.LAY5-B222

Datasheet

Technical drawing Add to favourites

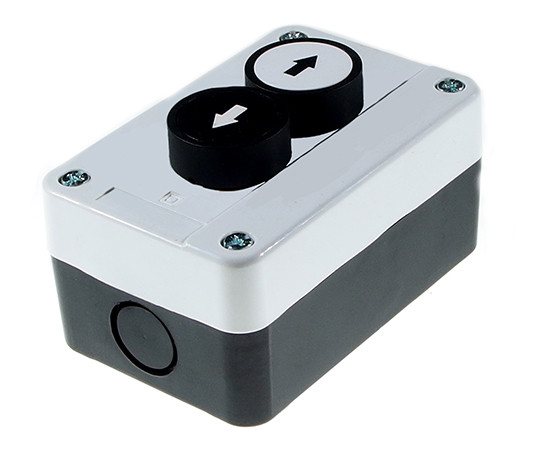

Control box; white (black arrow); + black (white arrow); flush; without lamp; spring return; N/O+N/O; IP54; two buttons; current: 10A; dimensions: 104x68.5x50.5+12mm

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	104x68.5x50.5+12mm
Button colour:	White/Black
Contacts configuration:	N/O+N/O
Accessories type:	N/A
Diameter:	29,5mm
Illumination:	None
Button shape:	Round

All parameters

Manufacturer:: XINDALI Manufacturer part number: XDL55-B222 RoHS Case style: Rys.LAY5-B222

In stock:

55 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	4,0003	3,4389	3,2204	3,1030	3,0771

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	104x68.5x50.5+12mm
Button colour:	White/Black
Contacts configuration:	N/O+N/O
Accessories type:	N/A
Diameter:	29,5mm
Illumination:	None
Button shape:	Round
Number of holes:	N/A
IP rating:	IP54
Button type:	Covered
Number of buttons:	2
Manufacturer:	N/A
