Control box; with bend-proof; N/C+N/O+N/O

Symbol Micros: PRZ LAY5-JBPH4P

344854

PRZ LAY5-JBPH4P

Contractor Symbol:

Case : Rys.LAY5-JBPH4P

Datasheet

Technical drawing Add to favourites

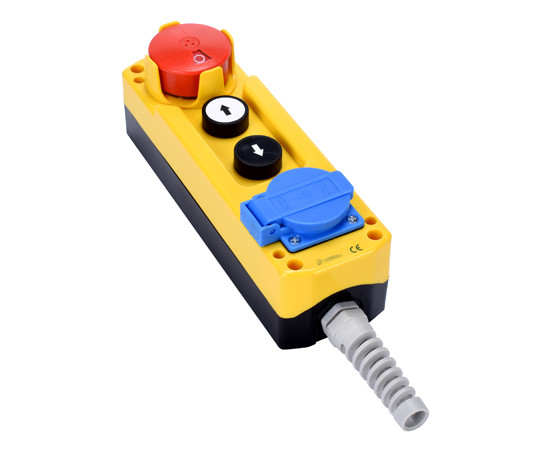

E-stop button: push-pull; red; + white (black arrow); + black (white arrow); flush; spring return + socket; with bend-proof; N/C+N/O+N/O; IP54; three buttons; dimensions: 239x75x65+16mm

Parameters

Dimensions:	239x75x65+16mm
Button colour:	Blue/Black/White/Red
Contacts configuration:	N/C+N/O+N/O
Accessories type:	With a bend protector
Illumination:	None
Button shape:	Round/Mushroom-shaped
Number of holes:	N/A

All parameters

Manufacturer:: XINDALI Manufacturer part number: XDL85-JB481F RoHS Case style: Rys.LAY5-JBPH4P

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	20+	40+
Net price (EUR)	15,5740	14,8873	14,4423	14,2772	14,1575

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	239x75x65+16mm
Button colour:	Blue/Black/White/Red
Contacts configuration:	N/C+N/O+N/O
Accessories type:	With a bend protector
Illumination:	None
Button shape:	Round/Mushroom-shaped
Number of holes:	N/A
IP rating:	IP54
Button type:	Covered/Protruding
Number of buttons:	3
Manufacturer:	N/A
