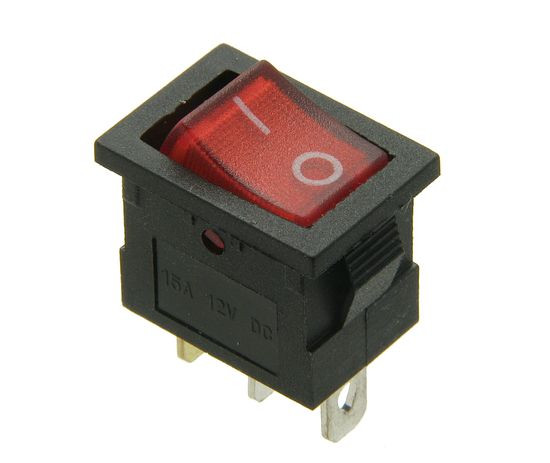

MIRS-101-2C/D automotive switch

Symbol Micros: PRZ Mirs101-2cdr

48211

PRZ Mirs101-2cdr

Contractor Symbol:

Case : Rys.MIRS101-2C/Dr

Datasheet

Technical drawing Add to favourites

15A; 12VDC; ON-OFF; single pole; SPST; 3P; red lamp; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Backlight colour:	Black
Contacts rating:	15A 12VDC
Key button colour:	Red
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Backlight colour:	Black
Contacts rating:	15A 12VDC
Key button colour:	Red
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
