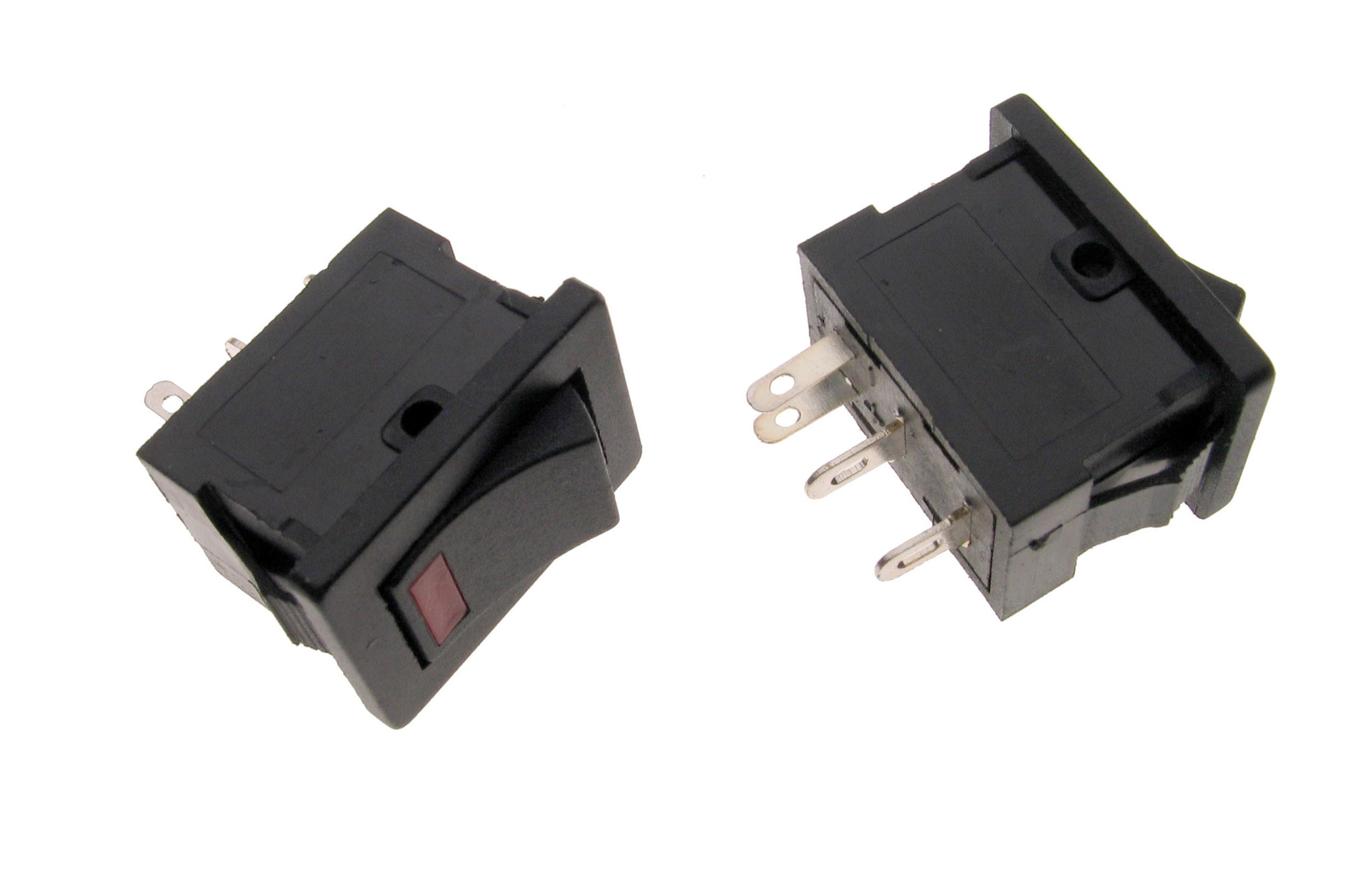

MIRS101-3L; illuminated; rocker switch;

Symbol Micros: PRZ Mirs101-3L

23287

PRZ Mirs101-3L

Contractor Symbol:

Case : Rys.MIRS101-3L

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker red illumination; LED; SPST; 4P; 6A 125V; 3A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts rating:	6A 125V 3A 250V
Key button colour:	Black
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A

All parameters

Manufacturer:: SWI Manufacturer part number: MIRS-101-3+LED RoHS Case style: Rys.MIRS101-3L

In stock:

525 pcs.

Quantity of pcs.	2+	10+	30+	100+	400+
Net price (EUR)	0,7352	0,4604	0,3829	0,3406	0,3195

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	6A 125V 3A 250V
Key button colour:	Black
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A
Accessories type:	N/A
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Button
