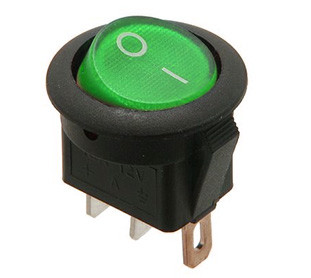

MIRS-101-8C/D automotive switch

Symbol Micros: PRZ Mirs101-8cdg

51114

PRZ Mirs101-8cdg

Contractor Symbol:

Case : Rys.MIRS101-8C/Dgr

Datasheet

Technical drawing Add to favourites

16A; 12VDC; ON-OFF; single pole; SPST; 3P; green lamp; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Backlight colour:	Green
Contacts rating:	16A 12VDC
Key button colour:	Green
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C

All parameters

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.MIRS101-8C/Dgr

In stock:

500 pcs.

Quantity of pcs.	2+	10+	30+	100+	400+
Net price (EUR)	0,7721	0,4844	0,4028	0,3573	0,3357

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.MIRS101-8C/Dgr

In stock:

439 pcs.

Quantity of pcs.	2+	10+	30+	100+	400+
Net price (EUR)	0,7721	0,4844	0,4028	0,3573	0,3357

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Green
Contacts rating:	16A 12VDC
Key button colour:	Green
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
