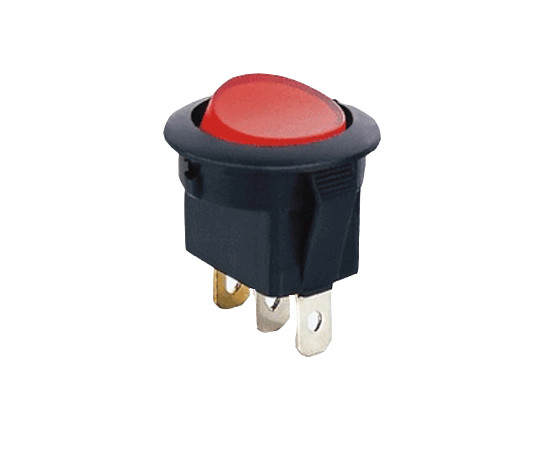

MIRS-101-8C/D automotive switch

Symbol Micros: PRZ Mirs101-8cdr

48213

PRZ Mirs101-8cdr

Contractor Symbol:

Case : Rys.MIRS101-8C/Dr

Datasheet

Technical drawing Add to favourites

16A; 12VDC; ON-OFF; single pole; SPST; 3P; red lamp; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Backlight colour:	Red
Contacts rating:	16A 12VDC
Key button colour:	Red
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C

All parameters

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.MIRS101-8C/Dr

In stock:

3865 pcs.

Quantity of pcs.	2+	15+	100+	300+	1000+
Net price (EUR)	0,7769	0,4556	0,3669	0,3477	0,3381

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Red
Contacts rating:	16A 12VDC
Key button colour:	Red
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
