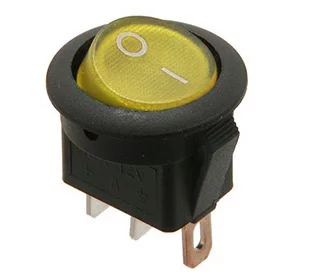

MIRS-101-8C/D automotive switch

Symbol Micros: PRZ Mirs101-8cdy

51116

PRZ Mirs101-8cdy

Contractor Symbol:

Case : Rys.MIRS101-8C/Dy

Datasheet

Technical drawing Add to favourites

16A; 12VDC; ON-OFF; single pole; SPST; 3P; yellow lamp; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Backlight colour:	Yellow
Contacts rating:	16A 12VDC
Key button colour:	Yellow
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C

All parameters

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.MIRS101-8C/Dy

In stock:

460 pcs.

Quantity of pcs.	2+	10+	30+	100+	400+
Net price (EUR)	0,7751	0,4862	0,4044	0,3586	0,3370

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Yellow
Contacts rating:	16A 12VDC
Key button colour:	Yellow
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
