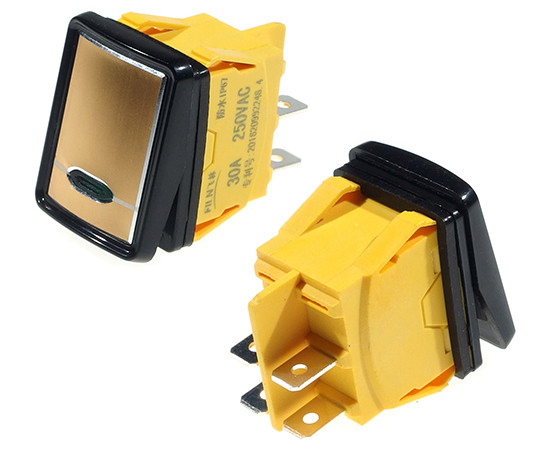

MIRS201-9g/g; rocker switch;

Symbol Micros: PRZ Mirs201-9g/g

231732

PRZ Mirs201-9g/g

Contractor Symbol:

Case : Rys.Mirs201-9g/g

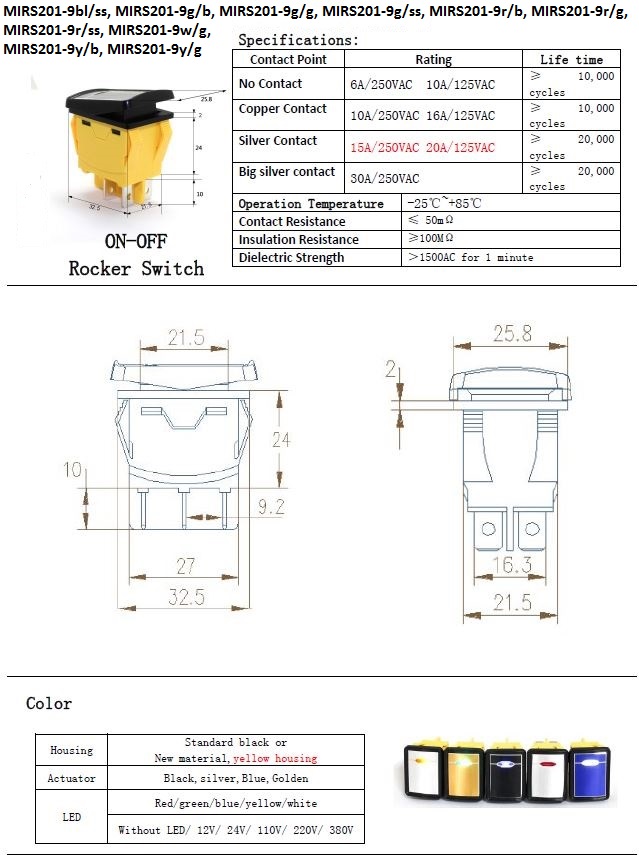

Datasheet

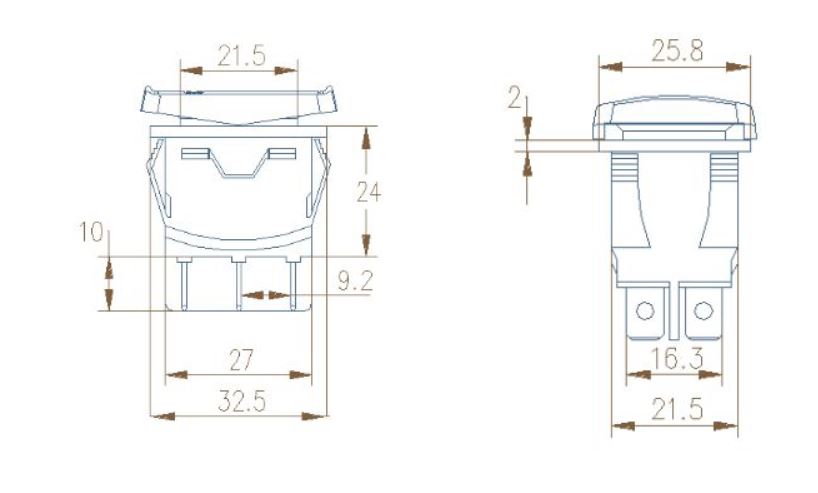

Technical drawing Add to favourites

2 stable positions; ON-OFF; gold actuator; green illumination 230V; DPST; 4P; 15A 250VAC; endurance: 20000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	15A 250VAC
Key button colour:	Golden
Backlight colour:	Green
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Yellow
Manufacturer:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	15A 250VAC
Key button colour:	Golden
Backlight colour:	Green
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Yellow
Manufacturer:	N/A
Accessories type:	N/A
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Button
