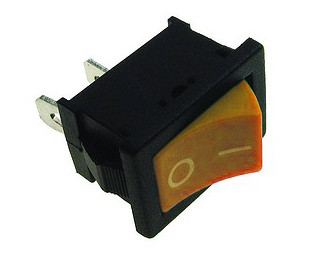

MRS101A-C3o; rocker switch;

Symbol Micros: PRZ Mrs101ac3o

21816

PRZ Mrs101ac3o

Contractor Symbol:

Case : Rys.MRS101A-C3o

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; cap colour: orange; SPST; 2P; 10A 125VAC or 6A 250VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Orange
Switching method:	ON-OFF
Contacts configuration:	SPST
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Body colour:	Black

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Orange
Switching method:	ON-OFF
Contacts configuration:	SPST
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Body colour:	Black
Manufacturer:	N/A
Type of switch:	Rocker
