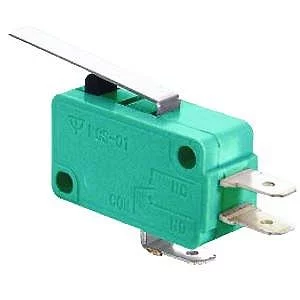

MSW-02-27; micro switch;

Symbol Micros: PRZ MSW02-27

26408

PRZ MSW02-27

Contractor Symbol:

Case : Rys.MSW-02-27

Datasheet

Technical drawing Add to favourites

10A; 250VAC; ON-(ON); SPDT; 3P; L=27mm; endurance: 100000 cycles; ambient temperature: -25°C+85°C

Parameters

Dimensions:	28,8x15,8x10,3mm
Contacts rating:	10A 250VAC
Lever length:	27mm
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT

All parameters

Manufacturer:: SWI Manufacturer part number: MSW-02/L=27 RoHS Case style: Rys.MSW-02-27

In stock:

202 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,9519	0,6330	0,5227	0,4724	0,4532

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/700 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-04-05

Quantity of pcs.: 500

• Parameters

Dimensions:	28,8x15,8x10,3mm
Contacts rating:	10A 250VAC
Lever length:	27mm
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
