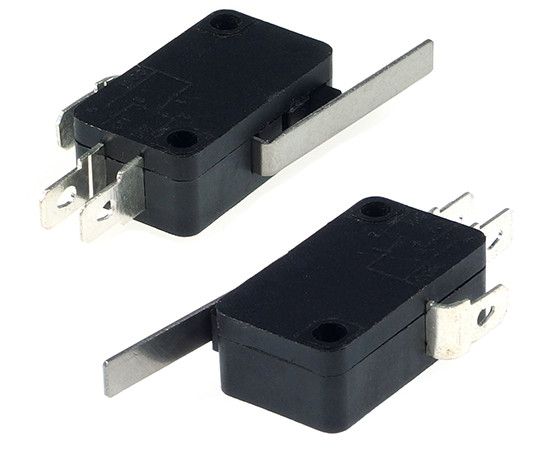

MSW-02C-28; micro switch;

Symbol Micros: PRZ MSW02c-28

255353

PRZ MSW02c-28

Contractor Symbol:

Case : Rys.MSW-02C-28

Datasheet

Technical drawing Add to favourites

16A; 250VAC; OFF-(ON); SPDT; 3P; L=28mm; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	28x16x10,5mm
Contacts rating:	15A 250VAC
Lever length:	28mm
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT

All parameters

Manufacturer:: FILN Manufacturer part number: KW1-103-3 Black micro switch RoHS Case style: Rys.MSW-02C-28

In stock:

55 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,3870	0,9723	0,8248	0,7557	0,7303

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	28x16x10,5mm
Contacts rating:	15A 250VAC
Lever length:	28mm
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
