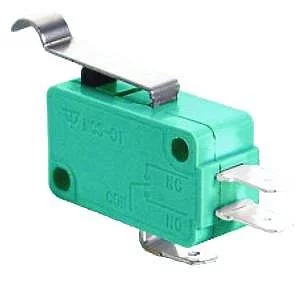

MSW-04; micro switch;

Symbol Micros: PRZ MSW04

14700

PRZ MSW04

Contractor Symbol:

Case : Rys.MSW-04

Datasheet

Technical drawing Add to favourites

10A; 250VAC; ON-(ON); SPDT; 3P; endurance: 100000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	28,8x15,8x10,3mm
Contacts rating:	10A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch

All parameters

Manufacturer:: SWI Manufacturer part number: MSW-04 RoHS Case style: Rys.MSW-04

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,0805	0,7188	0,5943	0,5356	0,5144

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/800 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-03-30

Quantity of pcs.: 1000

• Parameters

Dimensions:	28,8x15,8x10,3mm
Contacts rating:	10A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
