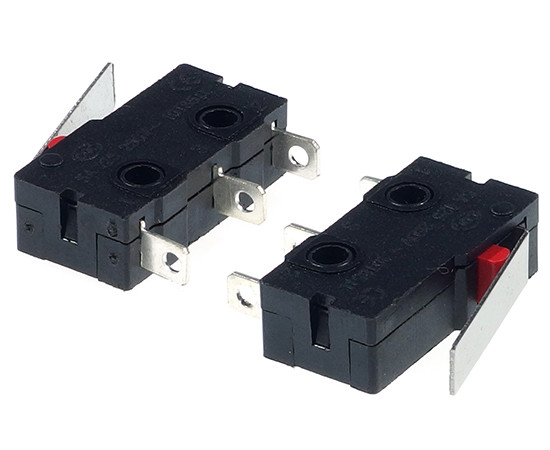

MSW-12-17 II micro switch

Symbol Micros: PRZ MSW12-17 II

255354

PRZ MSW12-17 II

Contractor Symbol:

Case : Rys.MSW-12-17 II

Datasheet

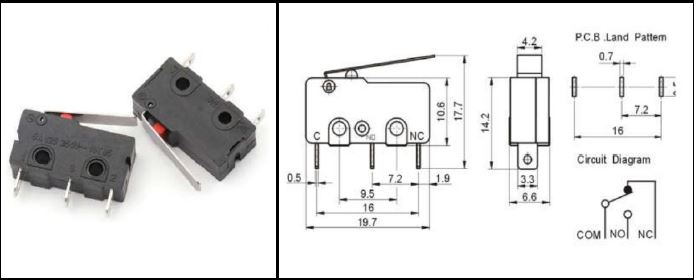

Technical drawing Add to favourites

5A; 250VAC; OFF-(ON); SPDT 3P; endurance: 100000 cycles; ambient temperature: -25°C+85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	19,7x10,6x6,6mm
Contacts rating:	5A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch

All parameters

Manufacturer:: FILN Manufacturer part number: KW11-3Z-2 RoHS Case style: Rys.MSW-12-17 II

In stock:

1000 pcs.

Quantity of pcs.	3+	20+	100+	500+	1000+
Net price (EUR)	0,3826	0,2108	0,1656	0,1502	0,1471

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/1000 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	19,7x10,6x6,6mm
Contacts rating:	5A 250VAC
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
