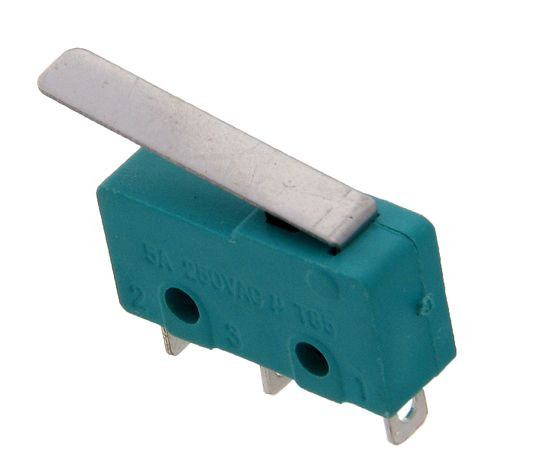

MSW-12-29; micro switch;

Symbol Micros: PRZ MSW12-29

59504

PRZ MSW12-29

Contractor Symbol:

Case : Rys.MSW-12-29

Datasheet

Technical drawing Add to favourites

5A; 250VAC; ON-(ON); SPDT; 3P; L=29mm; endurance: 100000 cycles; ambient temperature: -25°C+80°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	19,8x11,4x6,4mm
Contacts rating:	5A 250VAC
Lever length:	29mm
Operating temperature (range):	-25°C ~ 80°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT

All parameters

Manufacturer:: SWI Manufacturer part number: MSW-12 L=29 RoHS Case style: Rys.MSW-12-29

In stock:

435 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,7523	0,4762	0,3750	0,3382	0,3267

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	19,8x11,4x6,4mm
Contacts rating:	5A 250VAC
Lever length:	29mm
Operating temperature (range):	-25°C ~ 80°C
Manufacturer:	N/A
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
